243000 Pcs/h High Speed Tablet Compression Machine 460mm Rotary Table 7.5kW

243000 Pcs/h High Speed Tablet Compression Machine 460mm Rotary Table 7.5kW

243000 Pcs/h Tablet Compression Machine

Variable Frequency Speed Control Pressing

460mm Rotary Table Tablet Compressor

起源の場所:

中国、上海

ブランド名:

Tianfeng

証明:

CE, ISO 9001:2015

モデル番号:

ZP-41F / ZP-45A

送信
引用を要求しなさい
製品詳細
製品名:
高速錠剤圧縮機 243000 個/h
応用:
ビタミン錠、発泡錠、汎用錠剤の大量生産ライン
最大。容量:
243000個/h ZP-45A / 221400個/h ZP-41F
回転速度:
14-45 r/min ボタン式周波数変換機能付き
制御モード:

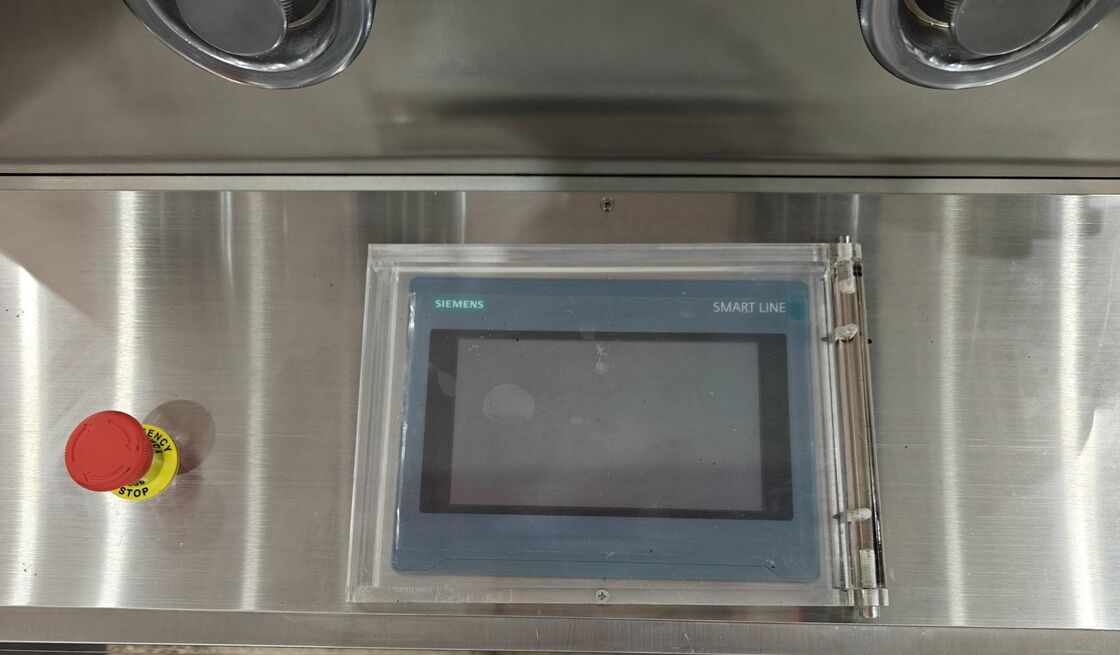

ボタン型周波数変換、PLCタッチスクリーンはオプション
回転式テーブルの直径:
460mm
モーター出力:
7.5 kW、4 極 INVT CHF-200A ドライブ付き
寸法 (長さ x 幅 x 高さ):
910×1220×1670mm
支払及び船積みの言葉
最小注文数量
1ユニット
価格
Negotiable, quotation issued after model and die confirmation
パッケージの詳細
防錆フィルムと衝撃吸収ベースを備えた輸出用木製ケース
受渡し時間
入金後20〜30営業日
支払条件
T/T、L/C、ウェスタンユニオン
供給の能力
月あたり50単位
製品の説明
The ZP-41F and ZP-45A high speed press is the answer for plants that sell volume. A 460 mm rotary table, 41 or 45 dies and a 7.5 kW four pole motor push the output to 221400 and 243000 pcs/h, while the turret turns between 14 and 45 r/min through button type frequency conversion. For a contract manufacturer running three shifts, that is the difference between two machines and one. Speed alone is not useful without control, so this high speed tablet compression machine pairs
