ZP41F ZP45A Rotary tablet compression Machine with high capacity

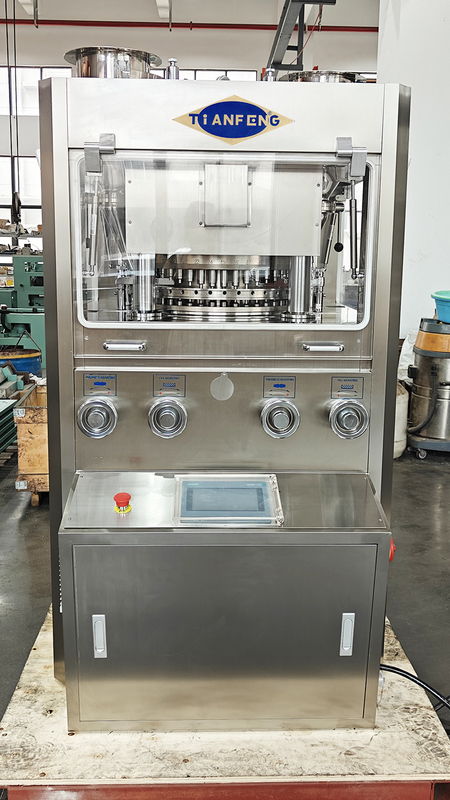

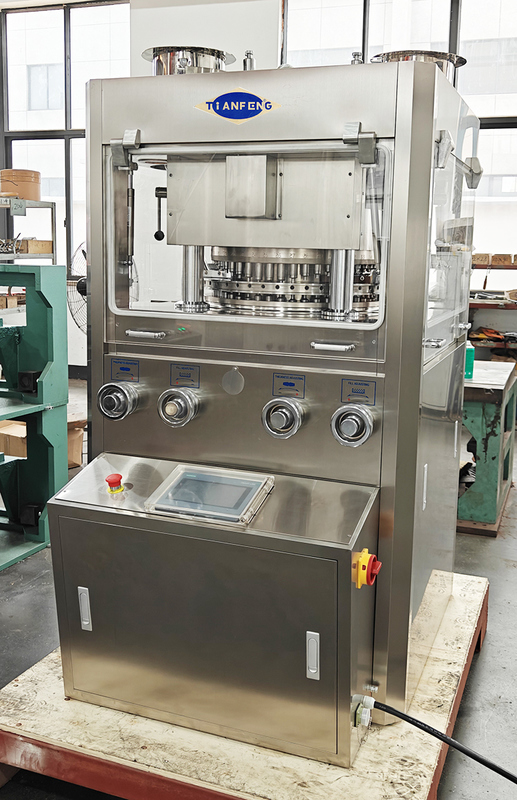

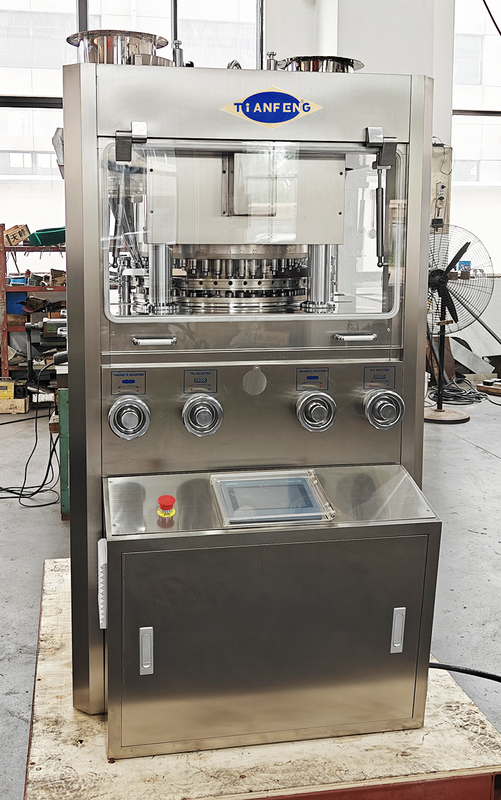

ZP-45A ZP-41F Rotary Tablet Press Machine

Product Description:

Main Working principles:

1. The cover of this tablet press machine is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution, meets GMP requirement.
2. The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.

3. Mechanical and electrical integration, variable speed operation.

Features:

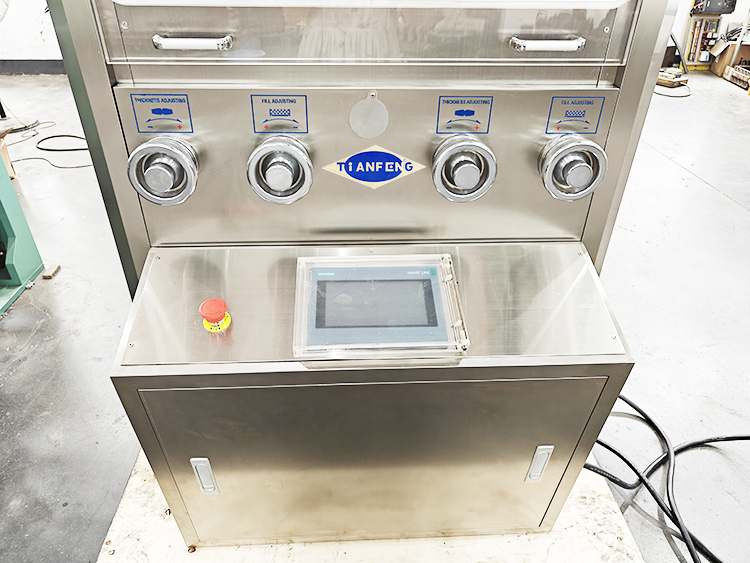

• User-Friendly Operation: Supports button-type frequency conversion speed control and PLC touch screen control (optional), meeting different levels of operational needs.

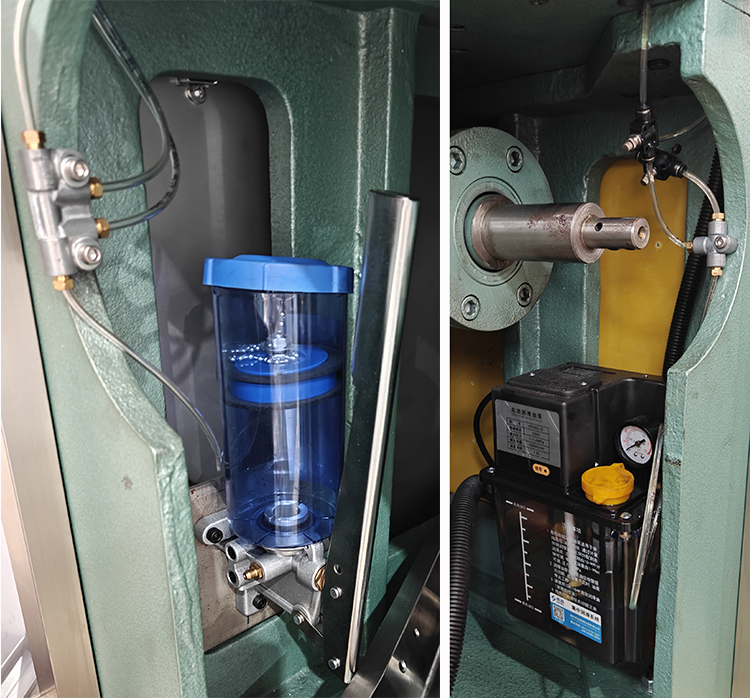

• Efficient Lubrication: Equipped with an automatic oil lubrication system. The grease lubrication system is semi-automatic and requires manual pressing.
• Superior Material: The standard rotary table middle mould plate is made of high-strength OT-500-7 material. Corrosion-resistant 2Cr13 stainless steel material is available as an option.
• Stable Operation: The upper track adopts a high-strength, wear-resistant dual-track design. The parallel rails are fully enclosed and equipped with anti-breakage and anti-drop punch plates, offering good rigidity and excellent dust prevention.
• Contamination Prevention Design: The upper punch of the mould is designed with an oil collection groove. When equipped with an oil collection ring, it effectively collects oil stains and contaminated powder, ensuring tablet cleanliness.

•

• Technical parameter:

  Model	ZP-45A	ZP-41F
  Dies (sets)	45	41
  Max. Pressure (KN)	100	100
  Max. dia. of tablet (mm)	13(special 16)	16(special 22)
  Max. Depth of fill (mm)	15	15
  Max. Thickness of largest tablet (mm)	6	6
  Rotational speed of revolving table(r/min)	14-45	14-45
  Max. Capacity(pcs/h)	243000	221400
  Diameter of rotary table (mm)	460	460
  Diameter of middle bmould (mm)	26	30
  Length of up and low punch pole (mm)	22	22
  Length of the lower punch pole(mm)	115	115
  Dimension (L*W*H)(mm)	910x1220x1670	910x1220x1670
  Motor(KW)	7.5kW 4L	7.5kW 4L
  Net Weight	1950	1950



Support and Services:

Our Product Technical Support and Services for the Rotary Tablet Press Machine include:

- Installation assistance and guidance

- Training for machine operation and maintenance

- Troubleshooting support for any technical issues

- Regular servicing and maintenance check-ups

- Access to technical documentation and resources

Packing and Shipping:

Product Packaging and Shipping:

Our Rotary Tablet Press Machine is carefully packaged to ensure safe delivery to our customers. The machine is securely wrapped in protective materials to prevent any damage during transportation. Additionally, the package is labeled with handling instructions and product information for easy identification.

For shipping, we partner with reliable courier services to deliver the Rotary Tablet Press Machine to your doorstep in a timely manner. You can track your shipment using the provided tracking number to know the status of your delivery.

FAQ:

Q: Are you trading company or manufacturer ?

We are factory, all machines are made by ourselves, and we have our R&D team so we also provide customize service and OEM.

Q: What Machine we make?

We engaged in making machines for the whole tablets production line and capsule production lines.

Q:What is your delivery time?

30 working days for Standard machine, We ship Monday through Saturday.
