ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with 380V Voltage and 17 Dies

ZPW17D Rotary Tablet Press Machine

380V Rotary Tablet Press Machine

17 Dies Tablet Press Machine

送信

引用を要求しなさい

ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with 380V Voltage and 17 Dies

製品詳細

モデル番号:

zpw17D

電圧:

380V

セットが死ぬ:

最大圧力:

60 kN

最大タブレットの直径:

20 mm

最大充填深さ:

15 mm

マックスタブレットの厚さ:

6 mm

生産能力:

40000 pcs/h

タレット速度:

37回転/分

モーターパワー:

2.2/960kW

全体的なサイズ:

615×890×1,415mm

重さ:

700 kg

コンピューター化:

コンピュータ化されていない

トランスポートパッケージ:

木製のケース

生産能力:

10セット/月

支払及び船積みの言葉

最小注文数量

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

最もよい価格を得なさい

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

最もよい価格を得なさい

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

最もよい価格を得なさい

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

最もよい価格を得なさい

送信

86-21-57664559

今接触

製品の説明

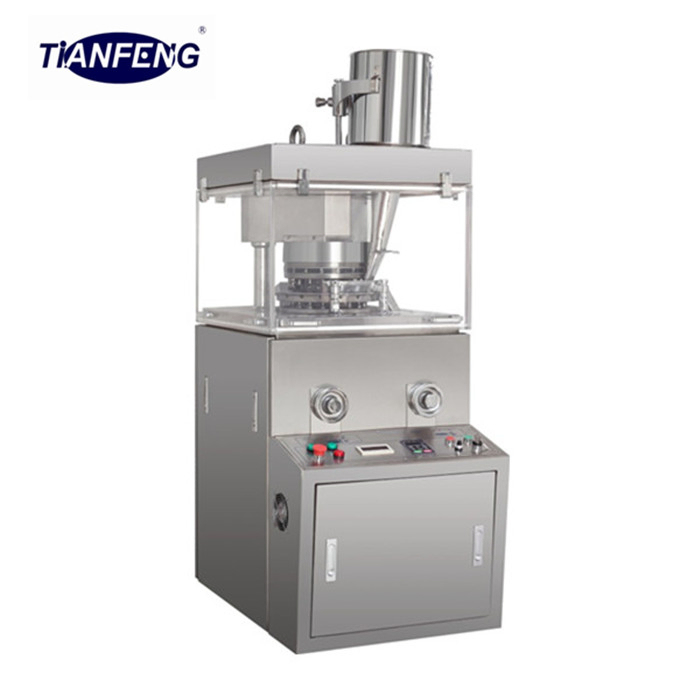

ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with Factory Price CE Certificate

Main Application

This single-press type, continuous automatic tablet press transforms granular raw materials into tablets. Primarily used in the pharmaceutical industry, it also serves chemical, food, electronic, plastic, and metallurgical applications.

Operating Principle

Fully-enclosed stainless steel exterior meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning/maintenance
Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel and devices on one side for simplified operation
Integrated overload protection system safeguards punches and apparatus from damage
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Parameters

Parameter	Value
Dies (sets)	17
Max. Pressure (kN)	60
Max. diameter of tablet (mm)	20
Max. Depth of fill (mm)	15
Max. Thickness of largest table (mm)	6
Production capacity (pcs/h)	40000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall size (mm)	615 x 890 x 1,415
Weight (kg)	700
