Name: GZPB370 High Speed Tablet Press Machine 380V Precision Stainless Steel Rotary Tablet Press
Brand: Shanghai Tianfeng Pharmaceutical Equipment Co., Ltd.
SKU: GZPB370
Price: 21,725.00 USD
Availability: InStock

ホーム > 製品 > 回転式タブレットの出版物機械 >

GZPB370 High Speed Tablet Press Machine 380V Precision Stainless Steel Rotary Tablet Press

380V Rotary Tablet Press

Precision Tablet Press Machine

Stainless Steel Tablet Press

起源の場所:

中国上海

ブランド名:

Tianfeng

証明:

CE ISO

モデル番号:

GZPB370

送信

引用を要求しなさい

製品詳細

型番:

GZPB370

電圧:

380V

場所のNO:

26 | 32 | 40

工具の種類:

D | B | BB

最大。プレッシャー:

100 | 80 | 80kN

マックスプレッシャー:

20 | 20 | 20kN

マックス。タブレットの直径:

丸型タブレット25 | 18 | 13 mm、特殊形状タブレット 25 | 19 | 16mm

マックス。充填深さ:

16 mm

マックス。錠剤の厚さ:

6 mm

上部と下部のパンチ長:

133.6mm

上下パンチ径:

25.35 | 19 | 19mm

中型直径:

38.1 | 30.16 | 24.01mm

中間型の高さ:

23.81 | 22.22 | 22.22mm

最大。タブレット出力:

135000 | 201000 | 252000個/時間

マックス。タレット速度:

11-87 | 11-105 | 11-105 1/分

主なモーターパワー:

11 | 7.5 | 7.5kW

機械の高さ:

1850mm

機械の床面積:

1200×950mm²

マシンネットウェイト:

1700 kg

支払及び船積みの言葉

最小注文数量

価格

Welcome to consult

パッケージの詳細

エクスポート用プレイウッドケース

受渡し時間

30〜45営業日

Professional Rotary Pill Press Machine for Pharmaceutical Manufacturing Needs

最もよい価格を得なさい

Status Code 403 Server openresty Description The server understood the request Rotary Tablet Press Machine

最もよい価格を得なさい

Advanced Rotary Tablet Press Machine for Smooth and Precise Production

最もよい価格を得なさい

Openresty Server Smooth Tablet Production with Rotary Tablet Compression Machine

最もよい価格を得なさい

送信

86-21-57664559

今接触

製品の説明

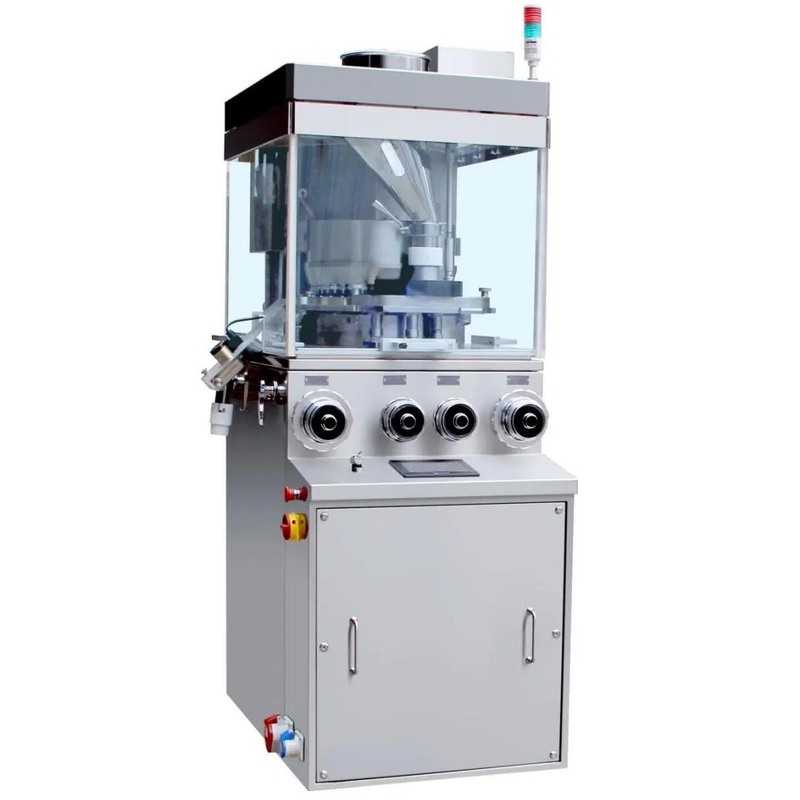

GZPB370 High Speed Tablet Press Machine

Purpose

This single side rotary tablet press machine converts granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.

Features

Stainless steel construction with fully enclosed housing. Rotary turret features hardened surface for wear resistance and complies with GMP standards.
Organic glass windows with stainless steel door frames enhance both aesthetics and structural rigidity.
Frequency inverter for adjustable speed. Motor mounted on base plate prevents vibration during operation.

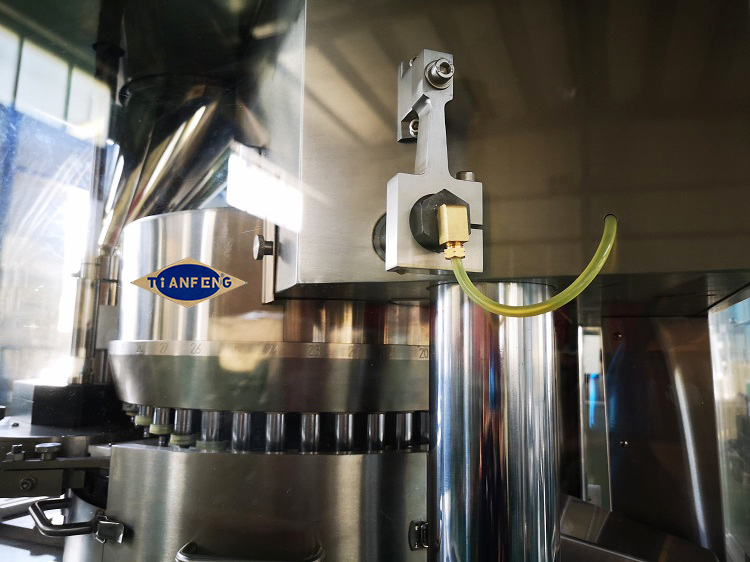

Intermittent automatic lubrication system for upper/lower guide rails and punches reduces wear.
Hydraulic overload protection automatically stops machine during over-pressure to prevent punch damage.
High-precision pressure sensor with amplifier enables reliable self-checking of tablet compression pressure. Easy-to-use weight control system with batch/individual rejection of substandard tablets.
Customizable impeller options in forced feeder for different material requirements.

Main Technical Parameters

Model	GZPB-26	GZPB-32	GZPB-40
No. of Stations	26	32	40
Type of Tooling	D	B	BB
Max. Pressure (kN)	100	80	80
Max. Pre-pressure (kN)	20	20	20
Max. Tablet Diameter (mm) - Round	25	18	13
Max. Tablet Diameter (mm) - Special shaped	25	19	16
Max. Filling Depth (mm)	16	16	16
Max. Tablet Thickness (mm)	6	6	6
Upper and Lower punch Length (mm)	133.6	133.6	133.6
Upper and Lower punch diameter (mm)	25.35	19	19
Middle Mold Diameter (mm)	38.1	30.16	24.01
Middle Mold Height (mm)	23.81	22.22	22.22
Max. Tablets output (pcs/hour)	135000	201000	252000
Max. Turret Speed (1/min)	11-87	11-105	11-105
Main Motor Power (kW)	11	7.5	7.5
Height of the Machine (mm)	1850	1850	1850
Machine Floor Space (mm²)	1200×950	1200×950	1200×950
Machine Net Weight (kg)	1700
